Integrated Encoder + IP66 Protection: The Strategic Advantage of JINPAT Slip Rings in Crawler Cranes

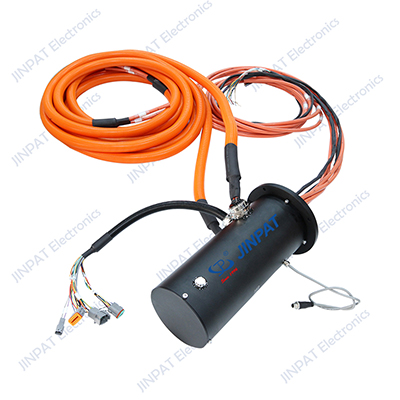

In the demanding world of heavy engineering, the slewing mechanism of a crawler crane is its most critical operational hub. It requires the seamless, 360-degree transmission of massive power and sensitive control data from the stationary chassis to the rotating superstructure. Given the immense loads and volatile outdoor conditions, the reliability of the crawler crane slip ring determines the machine's safety and uptime. JINPAT Electronics addresses these challenges with the LPTS000 high-current slip ring—a specialized solution engineered for "Precision Control and Industrial Strength."

1. Rock-Solid High-Current Transmission for Heavy Lifting

Crawler cranes often face peak current surges during intense lifting cycles. The JINPAT LPTS000 series is designed to handle these loads without compromise. By utilizing specialized alloy contact materials and an advanced thermal dissipation architecture, this heavy-duty slip ring maintains ultra-low contact resistance. This ensures minimal heat generation even during long-term, full-load operations, providing a constant and powerful energy supply to the crane’s primary drive systems.

2. The "Digital Eye": Integrated Encoder for Real-Time Precision

Modern construction machinery is rapidly moving toward automation. High-precision angle monitoring is no longer optional; it is essential for safety. The LPTS000 slip ring integrates a high-resolution encoder directly into its rotary housing:

• Seamless Integration: Eliminates the complexity and mechanical errors associated with external sensor mounting on the slewing bearing.

• Real-Time Feedback: Provides instantaneous data on the relative angle between the upper and lower structures. This is the core data required for torque control, precision positioning, and sophisticated anti-overturning systems.




•

3. IP66 Rated Durability: Engineered for Earth's Harshest Climates

Outdoor construction sites expose slip rings to relentless wind, sand, torrential rain, and corrosive salt spray. A failure in sealing leads to catastrophic downtime. The JINPAT LPTS000 is built as an environmental fortress:

• High Protection Rating: With an IP66 certified enclosure, this waterproof slip ring is completely impervious to dust ingress and survives powerful high-pressure water jets.

• Climate Resilience: From desert heat to arctic frost, the internal structure remains bone-dry and stable. This resilience drastically reduces maintenance costs and extends the operational lifespan of the crane's electrical system in extreme environments.

Empowering the Future of Intelligent Engineering Machinery

The JINPAT LPTS000 series slip ring is more than a conductor; it is an intelligent sensor hub that empowers crawler cranes with the ability to "feel" their rotation while delivering the power to move mountains. As the industry evolves toward smarter, safer equipment, JINPAT remains the trusted slip ring manufacturer for heavy-duty rotary connections.
