With the rapid development of electrification in construction machinery, electric excavators are increasingly replacing traditional hydraulic systems powered by internal combustion engines. This shift places higher demands on power transmission components, especially slip rings, which must deliver stable, high-current electrical power under harsh working conditions.

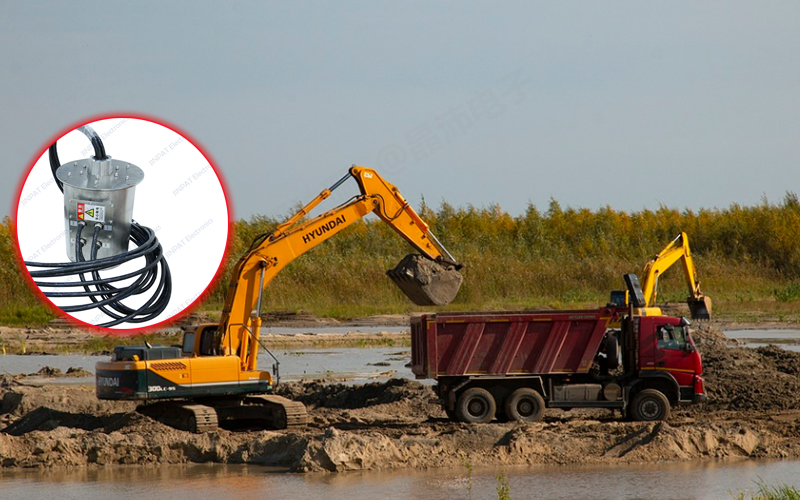

To meet these challenges, JINPAT this high-current slip ring has been specifically designed for electric excavator applications, providing reliable power transmission, excellent electrical insulation, and long-term operational stability.This slip ring features a 3 × 100A power circuit combined with a dedicated PE grounding line, enabling safe and stable transmission of high electrical loads. With a rated voltage of 6000V, it supports the power requirements of electric excavators operating under heavy-duty conditions, such as continuous rotation of the upper structure and high-load working cycles.The robust electrical design ensures consistent power delivery without fluctuation, even during frequent start-stop operations common in construction equipment.
Electrical safety is critical in high-voltage, high-current environments. This slip ring offers an insulation resistance of ≥1000MΩ at 2500VDC and a dielectric strength of 7900VAC at 50Hz, effectively minimizing the risk of electrical leakage or breakdown.These characteristics make the slip ring suitable for long-term operation in demanding industrial environments, ensuring stable system performance and enhanced equipment safety.
Electric excavators typically operate at low rotational speeds with high torque demands. This slip ring is optimized for a working speed of 0–50 rpm, maintaining stable electrical contact and smooth power transmission even at very low speeds.The design effectively prevents power interruption, contact jitter, and abnormal heating, which are common challenges in low-speed, high-current slip ring applications.
The contact system utilizes copper-graphite composite materials, combining excellent conductivity with superior wear resistance. This structure significantly reduces friction and contact wear during long-term operation under high current loads.As a result, the slip ring achieves extended service life with reduced maintenance frequency, helping equipment manufacturers and end users lower overall operating costs.
To withstand the demanding conditions of construction sites, the slip ring is enclosed in a stainless steel housing, offering strong resistance to corrosion, dust, moisture, and mechanical impact.With an IP65 protection rating, the slip ring effectively prevents dust ingress and resists water spray, ensuring reliable operation in muddy, humid, and outdoor environments. It operates reliably within a temperature range of -20°C to +60°C, making it suitable for diverse climates and job sites.
The slip ring is supplied with 5,000 mm lead wires on both stator and rotor sides, allowing greater flexibility in system layout and installation. This simplifies integration into electric excavator platforms and reduces constraints during equipment design and assembly.Specifically engineered for electric excavator applications, this high-current power slip ring provides a reliable solution for continuous power transmission between rotating and stationary parts. Its combination of high current capacity, superior insulation, rugged construction, and low-speed stability makes it an ideal choice for modern electric construction machinery.By ensuring stable power delivery and long-term reliability, this slip ring supports the performance, safety, and efficiency of next-generation electric excavators.
