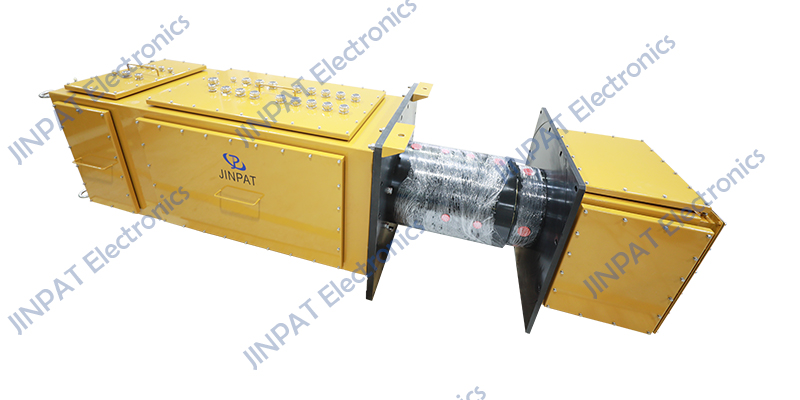

Heavy-duty slip rings for port crane equipment（14*400A+5*100A）

Features

Robust Enclosure Structure

The enclosure is constructed from SPCC steel plate with a yellow industrial paint finish, providing excellent mechanical strength and basic corrosion resistance while enhancing equipment visibility and safety.
Wide Temperature Operating Capability

Operating temperature range of -40°C to +40°C, ensuring stable performance in low-temperature and harsh climatic conditions. Suitable for outdoor and port equipment applications.
High-Reliability Contact System

Utilizes a proprietary copper-graphite + precious metal composite contact material, balancing high current-carrying capacity with stable signal transmission. This effectively reduces wear and extends service life.
Protection Rating Design

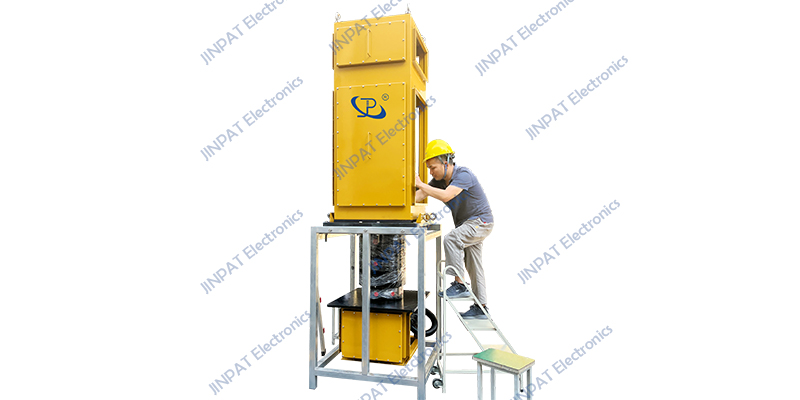

When installed vertically with the stator facing upward, the protection rating achieves IP56, offering excellent dust resistance and protection against powerful water jets. This makes it suitable for harsh industrial environments.

Electronic & Electric			Mechanical
Circuits	Total	54	Working Speed	0~10 rpm
	Detail	14400A+5100A+363A+ 540A+2424A+3Gigabit Ethernet	Inner Diameter	/
Rating Voltage		380V	Contact Material	Copper Graphite/ Precious Metals
Dielectric Strength		≥1000 MΩ@500 VDC (P) ≥100 MΩ@100 VDC (S)	Housing Material	SPCC spray-painted yellow
Insulation Resistance		≥1000 MΩ@500 VDC (P) ≥100 MΩ@100 VDC (S)	Lead Wire Length	/
Environment			Remarks
Working Temperature		-40°C~+40°C	Application	Port crane
Working Humidity		≤90%RH	Other	/
IP		IP56 (Vertical installation, stator facing upward)	Note: "P" stands for power, "S" stands for signal.
