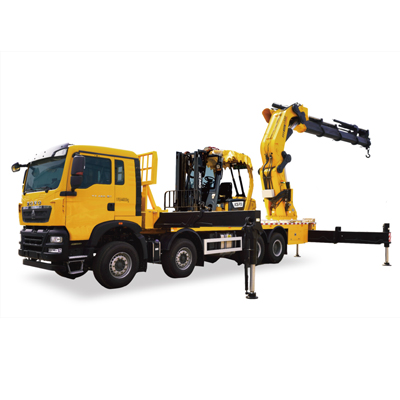

In high-end fields such as large-scale infrastructure construction and wind power installation, heavy-duty cranes face unprecedented complex challenges: continuous vibration from heavy loads, corrosion from marine or outdoor environments, and the demanding requirements of intelligent control systems for real-time data transmission. Any failure in the connection links can lead to significant engineering risks and economic losses.
The JINPAT LPTS series slip ring is designed to address these extreme operating conditions. It is not just a component for transmitting current and signals, but a systemic solution integrating environmental protection, pressure management, and high-speed communication.
Core Design, Directly Addressing Three Key Challenges:
-
Dynamic Pressure Balancing Design (Integrated Pressure Equalization Valve)
This is crucial for outdoor large-scale equipment exposed to sunlight, rain, and temperature fluctuations. Traditional high-protection slip rings are prone to negative pressure inside due to temperature changes, leading to moisture absorption or seal deformation. The integrated pressure equalization valve in the LPTS hollow shaft slip ring balances the internal and external air pressure, effectively preventing internal condensation, maintaining long-term dryness, and significantly improving reliability in humid and high-temperature difference environments, thus physically extending the lifespan of core components.
-
Digital Nerve Center (100Mbps Ethernet Channel)
Modern intelligent cranes rely on massive amounts of data: high-definition video surveillance, sensor status, control commands, etc. The 100Mbps Ethernet channel embedded in the LPTS hollow shaft slip ring provides a high-speed, low-latency, and interference-resistant transmission path for this data, ensuring real-time synchronization between control room commands and on-site feedback, which is a key foundation for precise lifting and remote intelligent monitoring.
-
Robust Sealing and Integration (IP66 Protection and Cable Outlet)
The IP66 protection rating forms the first line of defense, ensuring dustproof and waterproof performance. Compared to connector-based solutions, the integrated cable outlet design reduces potential points of connection failure, offers greater vibration resistance, and provides simpler and more secure wiring. This makes it suitable for the vibrating environments encountered during continuous crane operation, thus reducing maintenance requirements.
In summary, the JINPAT LPTS hollow shaft slip ring, through its innovative three-in-one design, deeply integrates "protection," "connectivity," and "intelligence," effectively addressing the core pain points of large-tonnage cranes in terms of reliable operation and data interconnection. It has become an indispensable key component supporting their safe and efficient operation.
