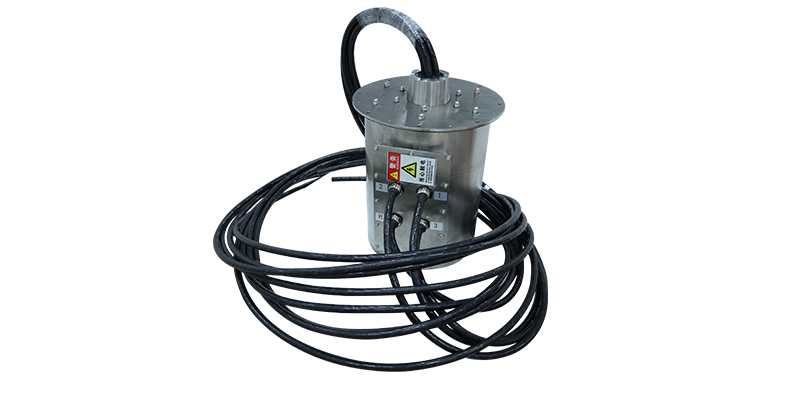

Electric excavator slip ring (3100A+1PE)

Inquire Now

1/4

Features Features Inquire Now

Features

High-Voltage Power Transmission

Supports 6000V rated voltage with 3 × 100A power circuits and PE, ensuring stable power supply for electric excavators under heavy-load operation.
Reliable Performance at Medium Speed

Designed for 0–50 rpm operation, maintaining stable electrical contact and smooth power transmission during continuous rotation.
Durable Copper-Graphite Contacts

Copper-graphite contact materials provide low contact resistance and reliable performance under high current conditions.
Flexible Installation and Integration

Equipped with 5,000 mm lead wires on both stator and rotor, offering greater flexibility for equipment layout and installation.

Electronic & Electric			Mechanical
Circuits	Total	4	Working Speed	0~50rpm
	Detail	3100A+1PE	Inner Diameter	/
Rating Voltage		6000V	Contact Material	Copper Graphite
Dielectric Strength		7900VAC@50Hz	Housing Material	SPCC(Black)
Insulation Resistance		≥1000MΩ@2500VDC	Lead Wire Length	Stator:5000mm Rotor:5000mm
Environment			Remarks
Working Temperature		-20°C~+60°C	Application	Electric Excavator
Working Humidity		≤60%RH	Other	/
IP		IP65	Note: "P" stands for power, "S" stands for signal.
