Hollow Shaft Slip Ring for Tower Crane

  • Model Code LPTS000-03100-01N-01PE
  • Circuits 14
  • Current (A) 3×30A+9signals+2×CAN bus+1×throttle signal
  • Voltage 36VDC
  • Rotating Speed (rmp) 0-100rpm
Inquire Now
Hollow Shaft Slip Ring for Tower Crane
Hollow Shaft Slip Ring for Tower Crane
1/4

Hollow Shaft Slip Ring for Tower Crane

Features Features Inquire Now

Features

  • IP67 Waterproof Protection

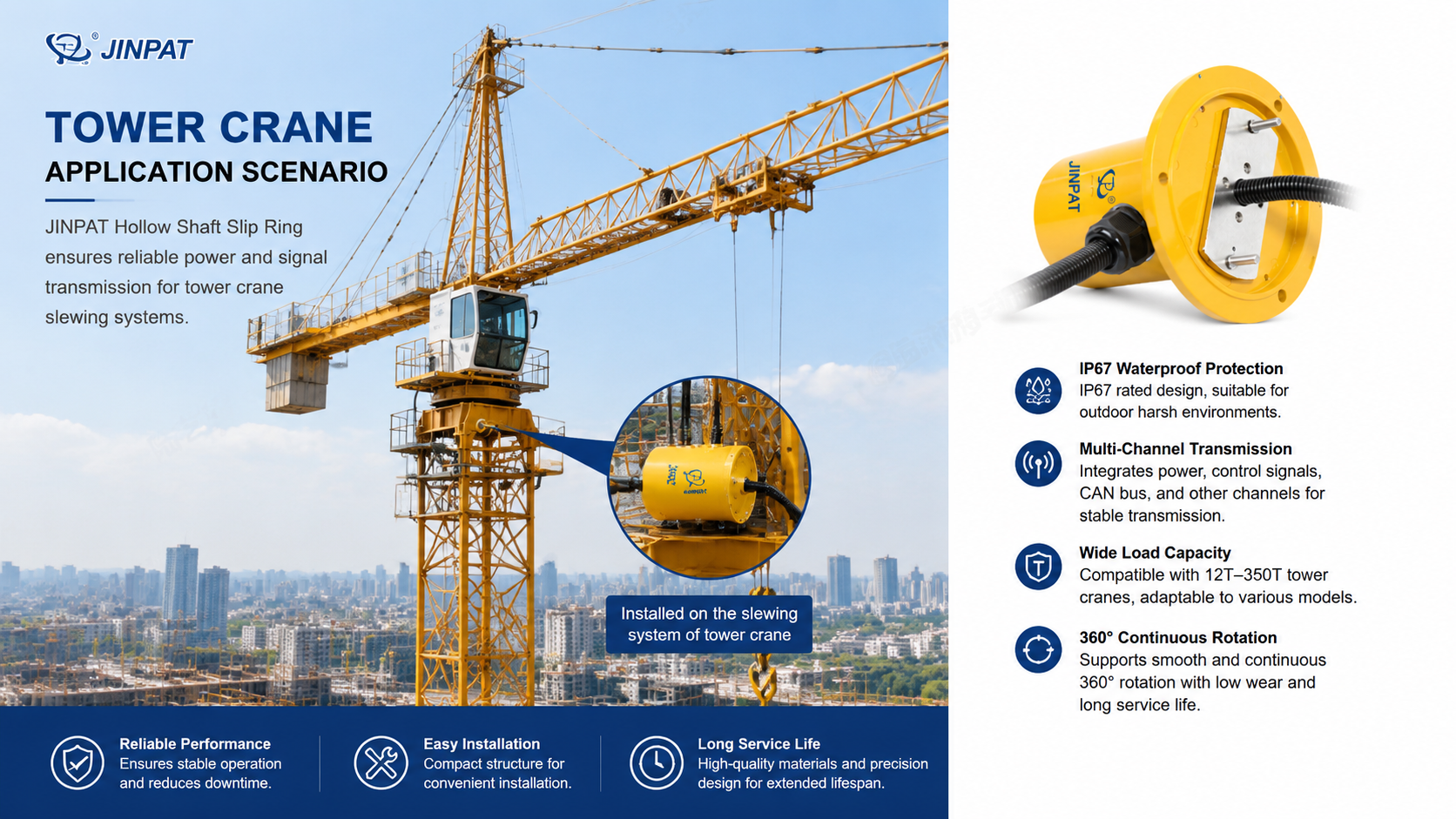

    Rated to IP67, the slip ring provides excellent waterproof performance and is well suited for long-term outdoor operation in tower crane applications.
  • Multi-Channel Signal & Power Transmission
    Supports simultaneous transmission of power, standard signals, throttle signals, CAN bus signals, and can also be integrated with encoders, enabling reliable communication and control during continuous rotation.
  • Wide Load Capacity Compatibility (12T–350T)
    Designed to meet the requirements of tower cranes with lifting capacities ranging from 12 tons to 350 tons, offering strong adaptability across different crane models.

Parameter

Electronic & Electric

Mechanical

Circuits

4

Working Speed

0~100rpm

Operating current

3*30A+9*signals

+2*CAN+1*signal

Wiring Method

/

Rating Voltage

36VDC

Contact Material

Precious Metals

Dielectric Strength

≥500VAC@50Hz

Housing Material

Aluminum Alloy

Insulation Resistance

≥500MΩ@500VDC

Wire Specifications

4.0/0.75mm FLRY-B/CAN bus

Environment

Remarks

Working Temperature

-30°C~+80°C

Application

Tower Crane

Working Humidity

≤ 95% RH

Other

/

IP

IP65

/
