Fire Truck Industrial Slip Ring（4*40A+12*5A(S)）

  • Model Code LPTS000-0440-14S
  • Circuits 18
  • Current (A) 4*40A+12*5A(S)
  • Voltage 220VAC
  • Rotating Speed (rmp) 0~100rpm
Inquire Now
Fire Truck Industrial Slip Ring（4*40A+12*5A(S)）
Fire Truck Industrial Slip Ring（4*40A+12*5A(S)）
1/4

Fire Truck Industrial Slip Ring（4*40A+12*5A(S)）

Features Features Inquire Now

Features

  • Adequate Cable Length Reserved
    Both the stator and rotor cables are 2500mm in length, providing significant flexibility for equipment layout, installation, and debugging.
  • Lightweight and Robust Structure
    The housing and shaft are made of aluminum alloy (painted or anodized), achieving lightweight construction while ensuring structural strength, making it easy to install.

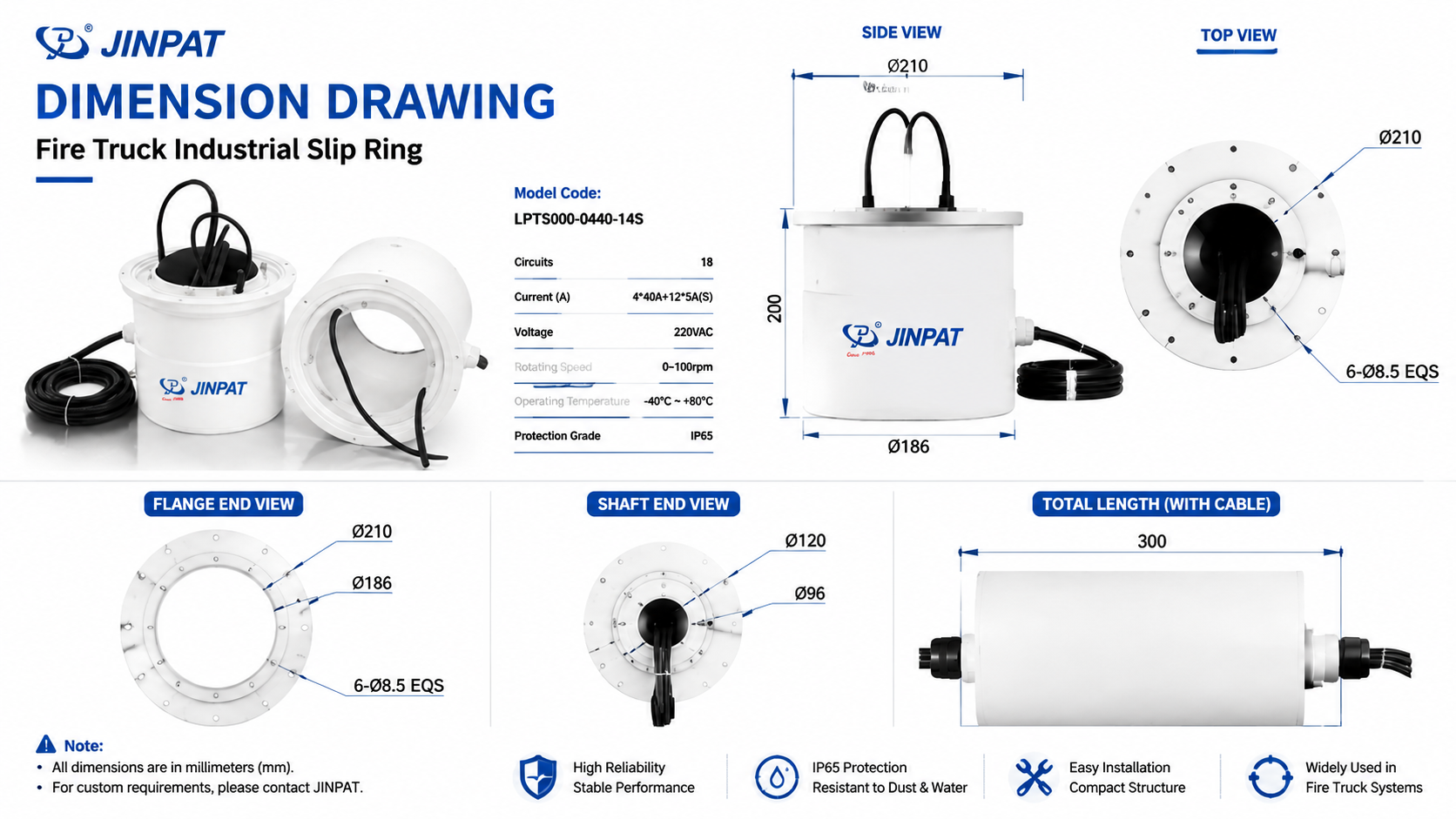

Parameter

Electronic & Electric

 Mechanical

Circuits

Total

18

Working Speed

0~100rpm

Detail

4*40A+12*5A(S)+2*CAN

Inner Diameter

/

Rating Voltage

220VAC

Contact Material

Precious Metals

Dielectric Strength

≥1000VAC@50Hz(P)

≥500VAC@50Hz(S)

Housing Material

Aluminum Alloy

Insulation Resistance

≥1000MΩ@500VDC

Lead Wire Length

Stator:2500mm

Rotor:2500mm

Environment

 Remarks

Working Temperature

-30℃~+80℃

Application

Customizable

Working Humidity

≤95%RH

 Note: "P" stands for power, "S" stands for signal.

IP

IP65 (Rotor facing upwards)
