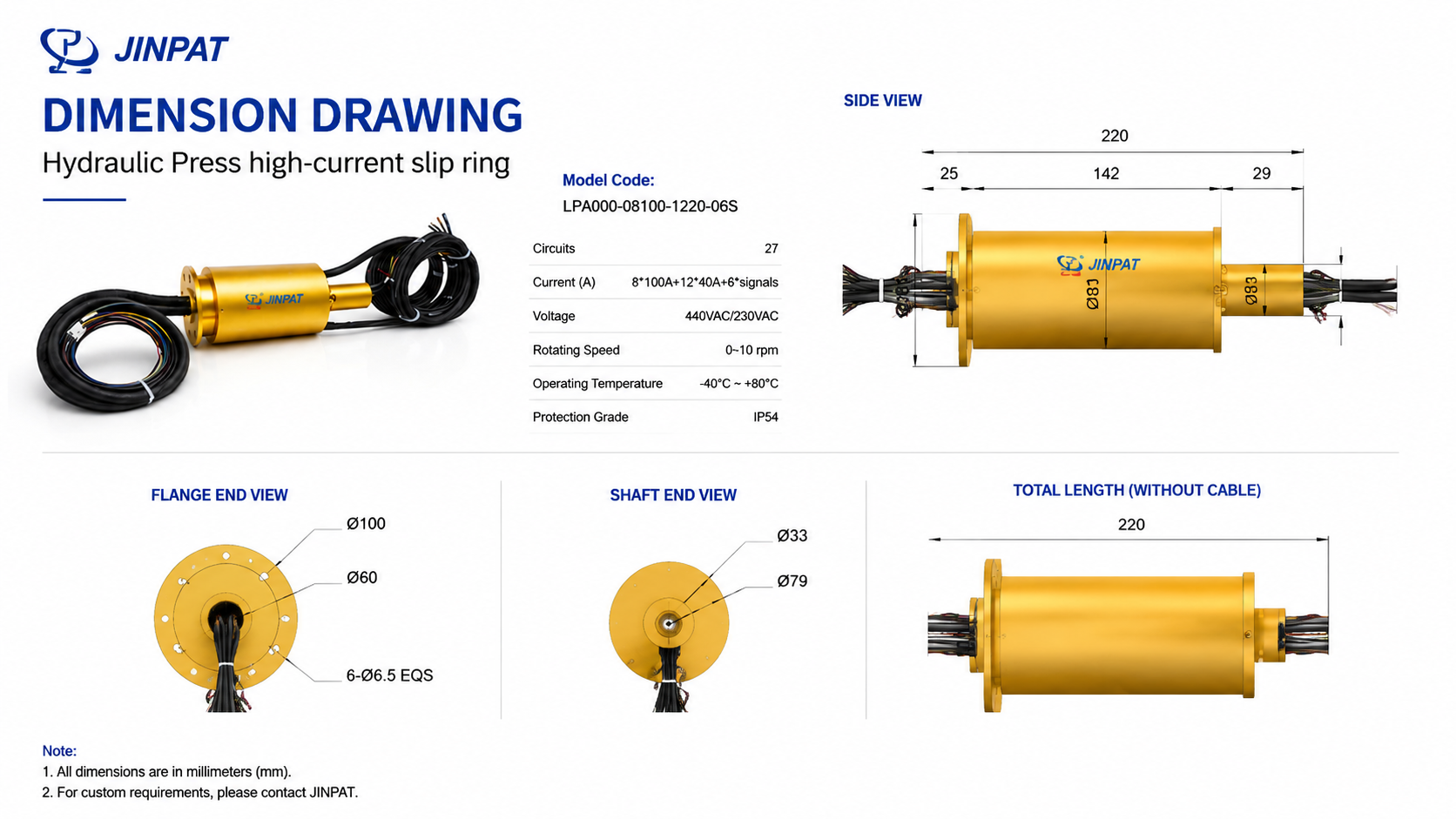

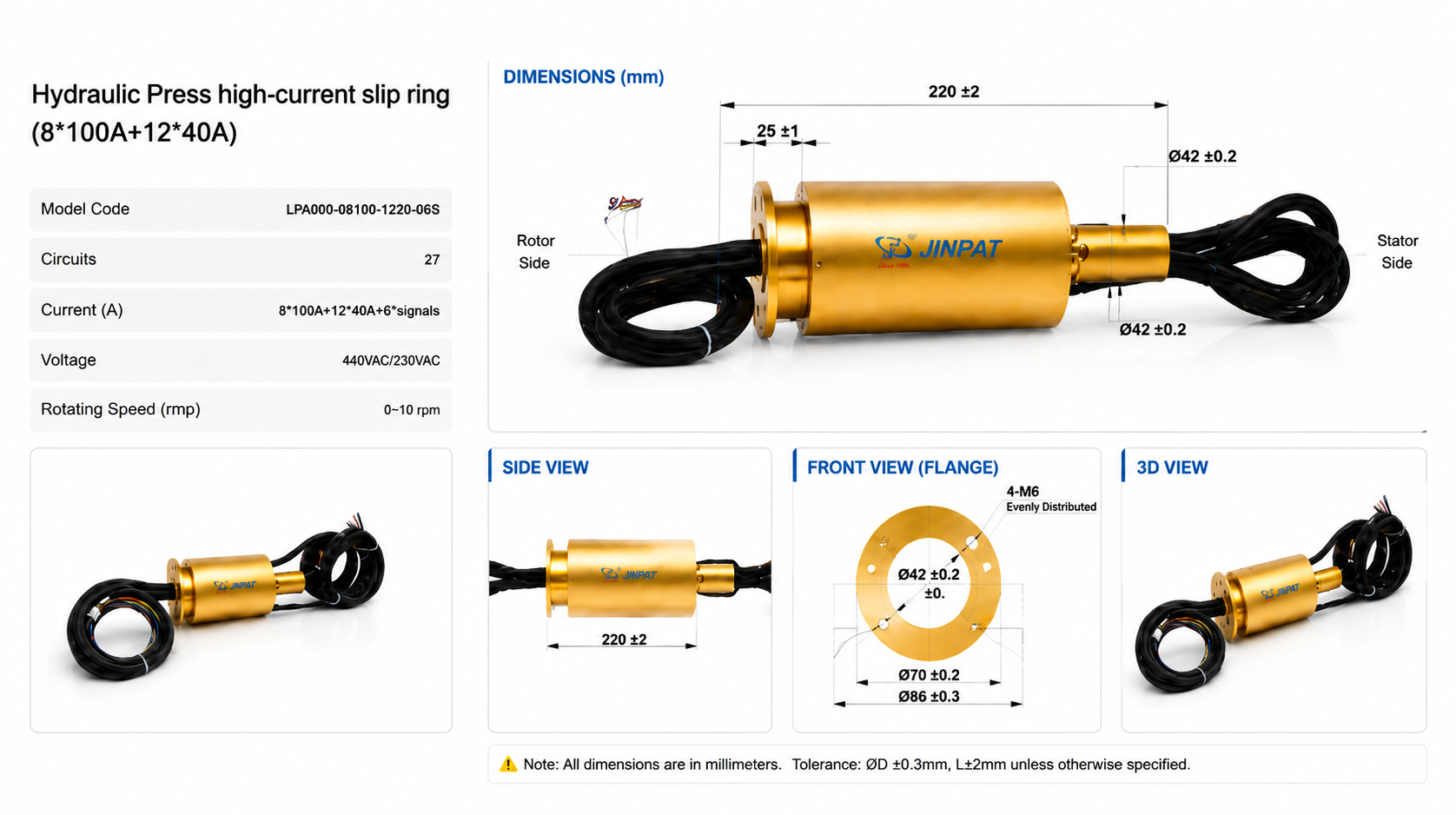

Hydraulic Press high-current slip ring (8100A+1240A)

Inquire Now

1/4

Features Features Inquire Now

Features

Carbon Brush High-Current Design

Uses carbon brush contact technology to carry large currents with stable and reliable performance.
Highly Integrated Multi-Circuit Structure

Supports multiple power and signal circuits in a compact, space-saving design.
Stable Operation Under Heavy Load

Engineered for continuous operation in high-load hydraulic press applications.
Strong Environmental Adaptability

Performs reliably in industrial environments with vibration, oil, and dust.

Electronic & Electric			Mechanical
Circuits	Total	27	Working Speed	0~10 rpm
	Detail	8100A+1240A+6*signals	Inner Diameter	/
Rating Voltage		440VAC/230VAC	Inner Diameter	Professional copper carbon brushes / Precious metals
Dielectric Strength		≥1000V@60Hz(P) ≥300V@60Hz(S)	Housing Material	Q235 steel (yellow painted)
Insulation Resistance		500MΩ@500VDC(P) 100MΩ@250VDC(S)	Lead Wire Length	Stator: 3m Rotor: 3 m
Environment			Remarks

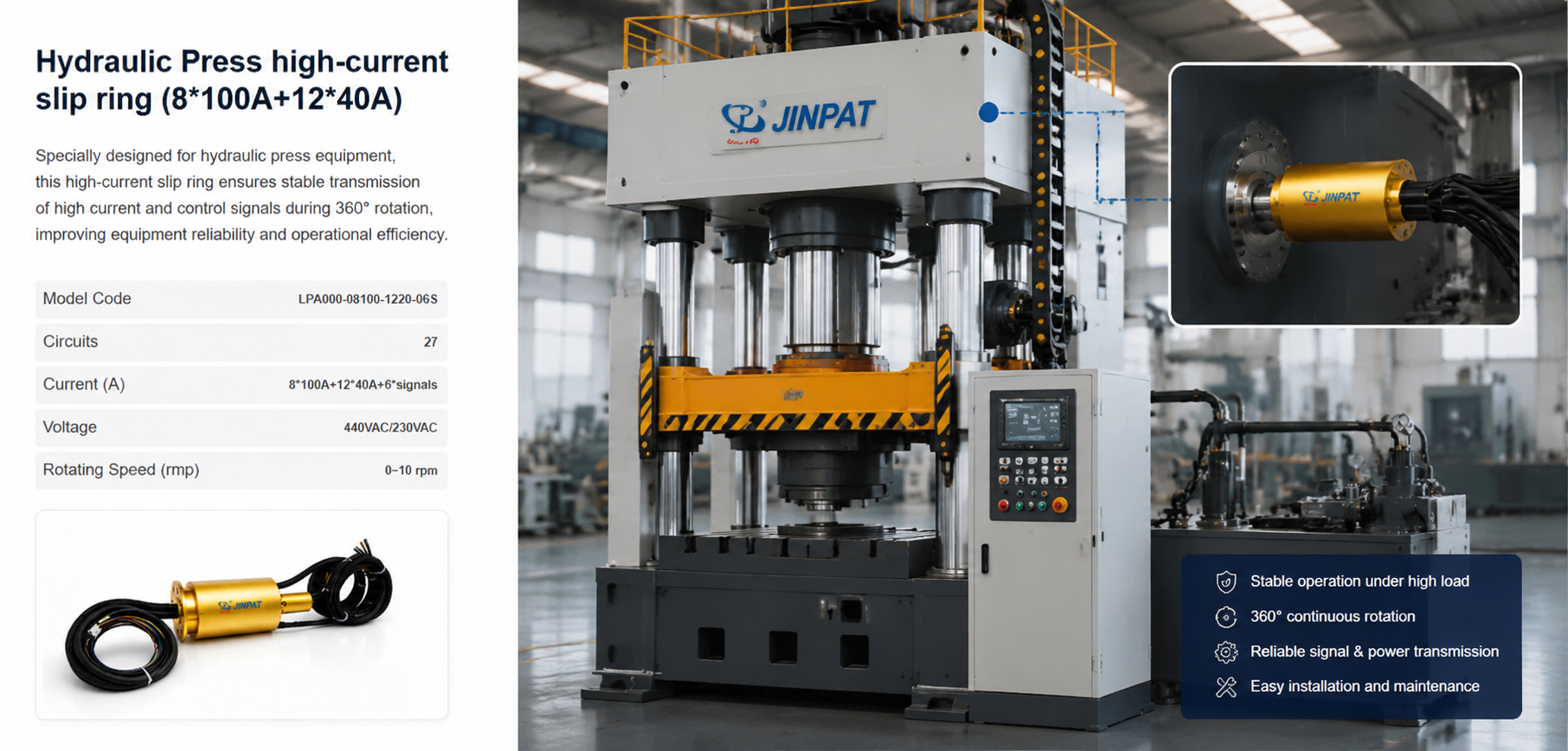

Working Temperature		-25℃~+40℃	Application	Hydraulic Press
Working Humidity		≥95% RH
IP		IP66	Note: "P" stands for power, "S" stands for signal.
