Compact high-current slip ring for pile driver（4*150A+1*N+1*PE）

  • Model Code LPA000-04150-01PE
  • Circuits 5
  • Current (A) 4*150A+1*N+1*PE
  • Voltage 380VAC
  • Rotating Speed (rmp) 0~10 rpm
Inquire Now
Compact high-current slip ring for pile driver（4*150A+1*N+1*PE）
Compact high-current slip ring for pile driver（4*150A+1*N+1*PE）
1/4

Compact high-current slip ring for pile driver（4*150A+1*N+1*PE）

Features Features Inquire Now

Features

  • Internal Cable Connection Design
    Compact outer diameter for easy installation in space-limited machinery.
  • Carbon Brush High-Current Transmission
    Ensures stable and reliable power delivery for heavy-duty construction equipment.
  • IP66 Protection Rating
    High-level protection against dust and water for demanding job-site conditions.
  • High Reliability and Long Service Life
    Designed for long-term operation in static pile press machines.

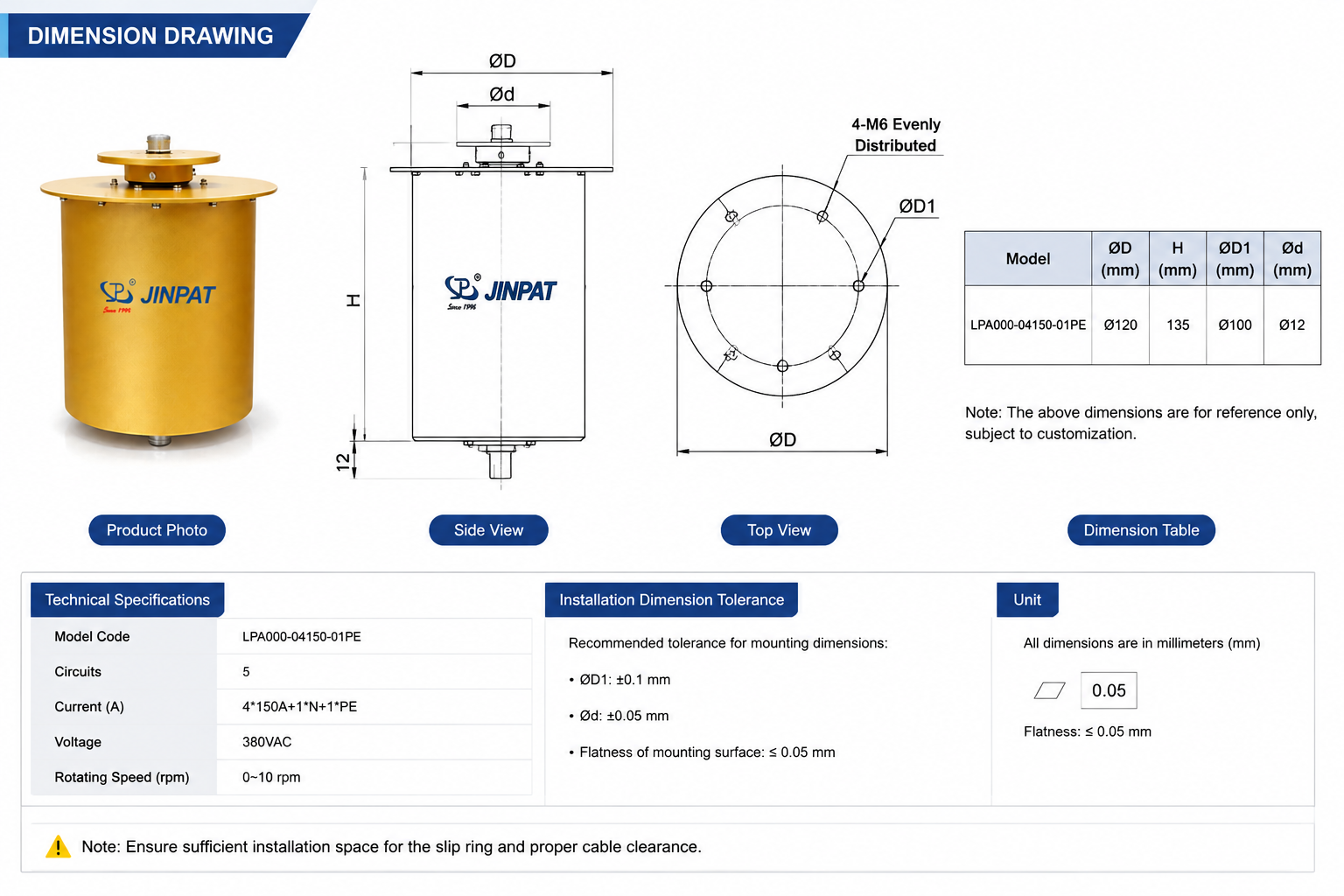

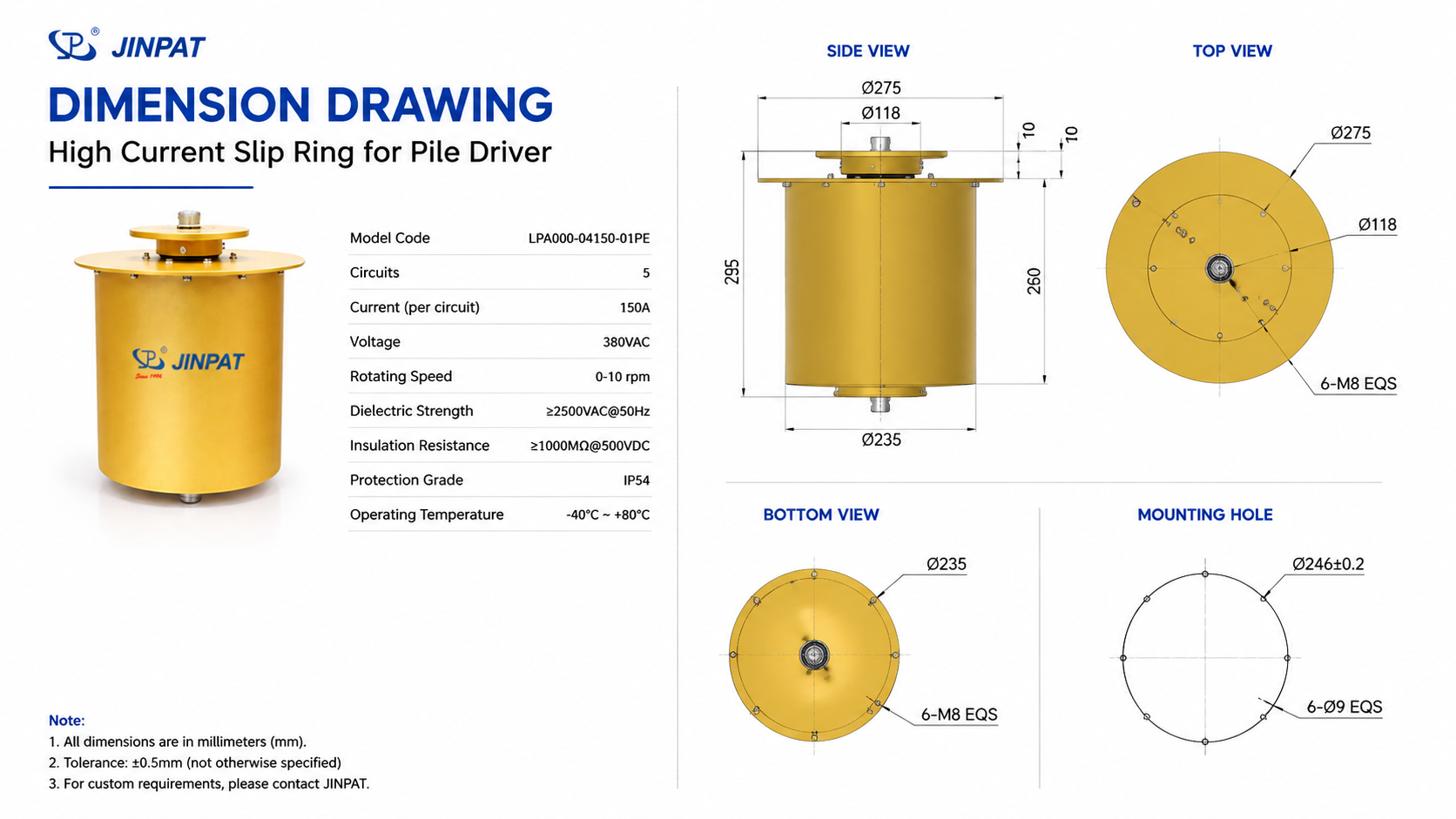

Parameter

Electronic & Electric

 Mechanical
Circuits Total 5 Working Speed 0~10 rpm
Detail 4*150A+1*N+1*PE Inner Diameter /
Rating Voltage 380VAC Contact Material Special copper-graphite
Dielectric Strength

2500VAC@50Hz

 Housing Material Q235 steel (yellow painted)
Insulation Resistance

≥500MΩ@500VDC

 Lead Wire Length Customizable

Environment

 Remarks

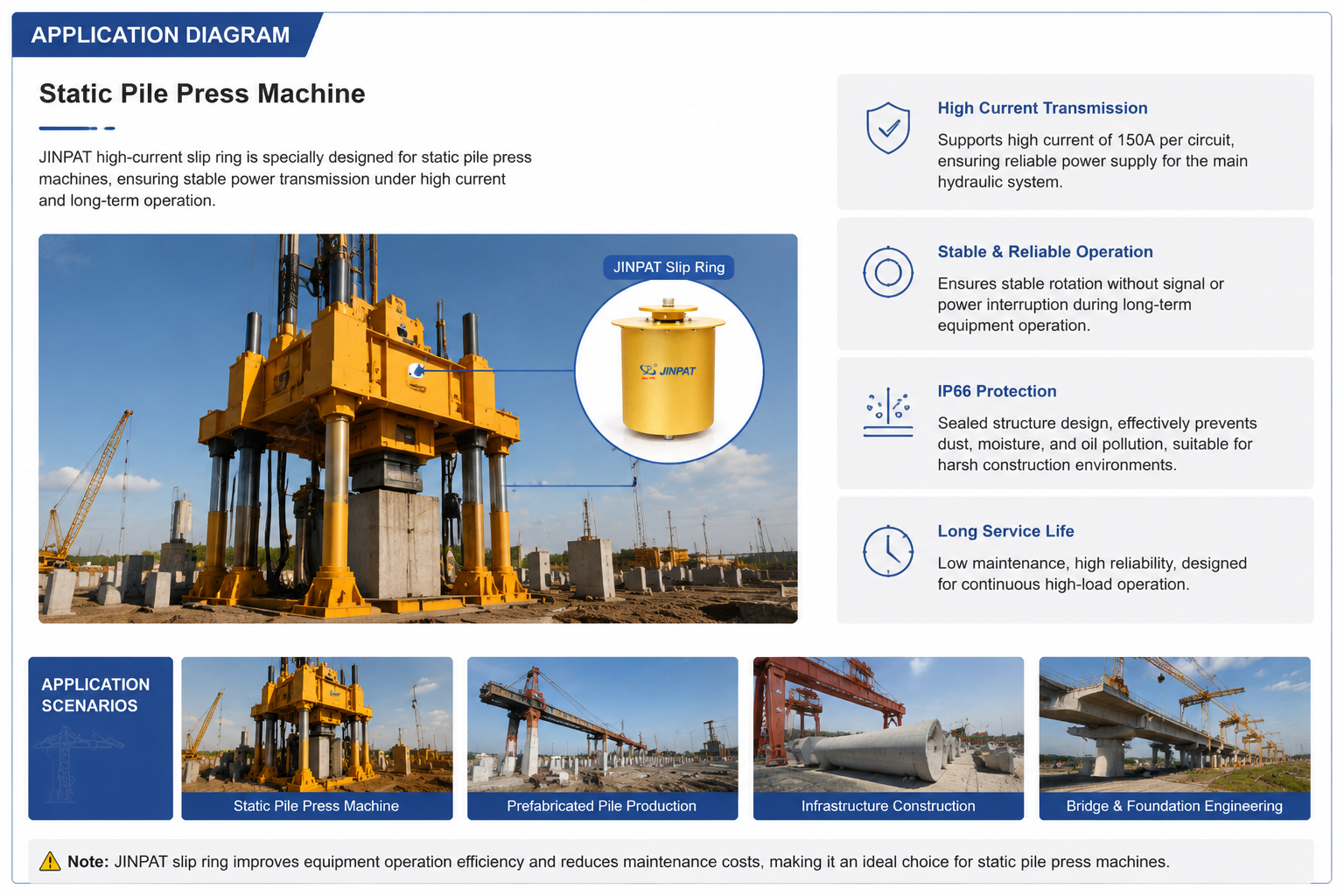

Working Temperature -25℃~+40℃ Application Static pile press machine
Working Humidity ≥95% RH
IP IP66 Other /
